Let’s drive into the world of vintage Bosch fuel injection systems and understand what are CIS Injectors. Let’s break it down:
Overview
Bosch developed several major types of early electronic and mechanical fuel injection systems from the 1960s–1980s. The three you mentioned — CIS, K-Jetronic, and L-Jetronic — are related but quite different in how they deliver fuel.
CIS (Continuous Injection System) — aka K-Jetronic
How it works:
-
CIS = Continuous Injection System, Bosch’s name for K-Jetronic.
So technically, CIS and K-Jetronic are the same thing. -
It is a mechanical fuel injection system.
-
Fuel is continuously sprayed into each intake port — not pulsed electronically.
-
A fuel distributor and airflow sensor plate mechanically meter fuel based on air intake.
-
Later variants (like KE-Jetronic) added electronic control for fine adjustments.
Injector type:
-

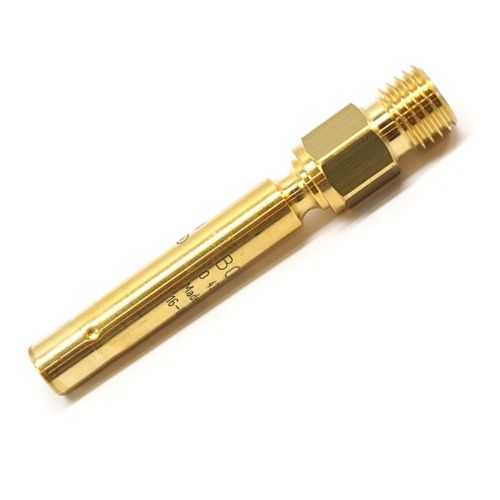

Mechanical injectors — they’re spring-loaded nozzles that open at a set pressure (no electrical connector).
Cars that used it:
-
Volkswagen Golf/Rabbit, Jetta, Scirocco (1970s–mid-80s)
-
Porsche 911, 924, 928
-
Mercedes-Benz (late 1970s–1980s)
-
Volvo 240, 740 (some variants)
-
Audi 4000/5000 (early models)
-
Saab 900 (early models)
K-Jetronic (by name)
As mentioned, this is the Bosch CIS.
But it’s worth noting there were several subtypes:
| Version | Type | Years | Notes |
|---|---|---|---|
| K-Jetronic | Mechanical | 1973–85 | Basic continuous injection |
| KE-Jetronic | Electro-mechanical | mid-1980s–early 1990s | Adds electronic control of fuel mixture |
L-Jetronic
How it works:
-
L-Jetronic is a fully electronic, pulsed fuel injection system.
-
Uses an airflow meter (vane-type) to measure incoming air.
-
An ECU (computer) calculates injection time based on sensors (air temp, throttle position, coolant temp, etc.).
-
Fuel is injected in pulses rather than continuously.
Injector type:
-
Electronic solenoid injectors — each has a connector and opens when the ECU sends a pulse.
Cars that used it:
-
BMW 320i (E21, late ’70s)
-
Datsun/Nissan 280Z, 280ZX
-
Alfa Romeo Spider (1982+)
-
Fiat, Lancia models
-
Volvo 240 (certain B21F engines)
-
Volkswagen Type 2 (Bus), Type 3, Beetle (late EFI models)
-
Porsche 914 1.8 (mid-’70s)
Summary Table
| System | Type | Injector | Injection Mode | Control | Typical Era | Example Cars |
|---|---|---|---|---|---|---|
| CIS / K-Jetronic | Mechanical | Pressure-opened (no electrical connection) | Continuous | Mechanical | 1973–1985 | VW, Porsche, Mercedes, Audi |
| KE-Jetronic | Electro-mechanical | Same injectors, with electronic pressure control | Continuous | Partial ECU | 1985–1992 | Mercedes, Volvo, Saab |
| L-Jetronic | Electronic | Solenoid, ECU-controlled | Pulsed | Full ECU | 1974–1985 | BMW, Datsun, Alfa Romeo, VW |
