How Often Should You Clean E-TEC Injectors

Redline Injectors E-TEC Injector Cleaning

E-TEC Injector Cleaning:

  • Evinrude E-TEC fuel injectors should generally be professionally cleaned every 300–500 engine hours, or every 1–2 years, depending on usage conditions.

However, here’s a more specific breakdown:

Recommended Cleaning Intervals:

  • Heavy Use / Saltwater / Poor Fuel Quality: Every 250–300 hours

  • Normal Use / Freshwater: Every 400–500 hours

  • Storage or Long-Term Idle: Clean before storage or after sitting unused for extended periods. (#1 cause of Pintle blockages, clean before to remove fuel is far more effective)

Signs Injectors Need Cleaning Sooner:

  • Hard starting or extended cranking

  • Uneven idle or misfire

  • Loss of power or throttle hesitation

  • Increased fuel consumption

  • Visible varnish, corrosion, or debris in fuel system

Pro Tip:

E-TEC injectors are sensitive and expensive—preventative maintenance is much cheaper than replacing damaged units. Using high-quality fuel, Evinrude XD100 oil, and a proper fuel filter system helps prolong their life.

Symptoms of Clogged Marine Injectors

Clogged or failing marine fuel injectors—like those in Evinrude E-TEC systems—can cause a range of performance issues. Here are the most common symptoms of clogged marine fuel injectors:

Performance Symptoms

  • Hard starting or no-start: Engine cranks but doesn’t fire easily

  • Loss of power: Noticeable drop in top-end or mid-range performance

  • Rough idle or engine shake: Especially when cold or under load

  • Hesitation or stuttering: Delayed throttle response or sputtering

  • Misfires: Intermittent or rhythmic popping, especially under acceleration

  • Reduced RPMs: Can’t reach normal WOT (wide-open throttle) RPM range

  • Increased fuel consumption: More fuel used, less performance returned

Fuel & Exhaust Symptoms

  • Fuel smell: Raw fuel odor from exhaust or around engine

  • Excess smoke: Especially dark or white smoke from exhaust

  • Poor combustion: Sooty plugs, carbon buildup, or wet spark plugs

Mechanical Clues

  • Injector noise changes: Clicking sound weak or irregular (if audible)

  • Engine alarms or codes: EMM (Engine Management Module) may log faults

  • Fuel rail pressure issues: Inconsistent or low fuel pressure

If you’re seeing these issues, cleaning or servicing the injectors can often restore original performance—especially when using a professional ultrasonic cleaning and flow testing service.

Specialized pintle Nozzle cleaning—like the service provided by Redline Injectors—may be necessary for proper injector restoration.

E-TEC Injector Cleaning

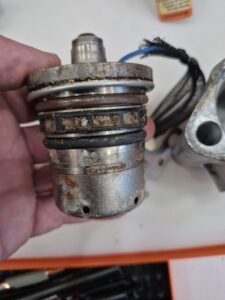

Don’t let your injectors end up like the one shown—at that point, it’s no longer cleaning, it is attempted injector recovery, and internal parts are probably already worn beyond manufacturers operational spec.
